Industrial Dust Collector Filter Bag Cage

Method: Vertical
Medium Material: Natural Fiber
Type: Fabric Dust Collector
Material: Carbon or Stainless Steel
Wire Thickness: 2-4 mm
Color: Customized
Usage: for Filter Bags
Thickness: Φ3, 3.2, 3.5, 3.8, 4.0
Transport Package: Poly Bag
Origin: China
Certification: ISO, SGS
Operation
Type: Fully automatic
Dust Collecting Method: Dry
Name: Filter Bag Cage
Quality Warranty: 18 Month
Working Life: 24 Month
Size: Customized
Application: Industry
Specification: customized
HS Code: 56021000

Description

Product Description

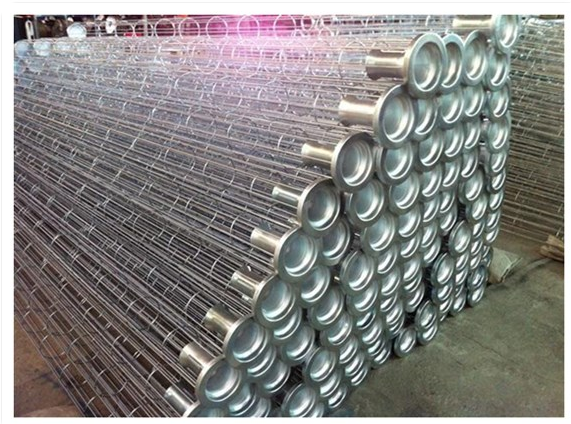

Industrial filter bag cage for dust collector system
filter bag cage is the rib of filter bag, it should light and for installation and maintenace. The quality of a cagte has derictly bearing on the filtering state adn service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness,

Surface treatment of filter cage:
Our filter cages are roughly divided into three types: stainless steel, galvanized processing, roganic silicon powder coating. We take carbon steel as raw material, the surface use imported organic silcon powder electrostatic spray coating. The cost of this type is muchcheaper than stainless steel, it is good in anti-corrosion.

Specification:

1.material of the filter cage: Carbon Steel / SS 304 SS 316 SS316L

2.type of cage: any type

3.type of the horizontal bar: Any type

4.surface treatment: Galvanized or silicon powder plated .

The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.

The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.
