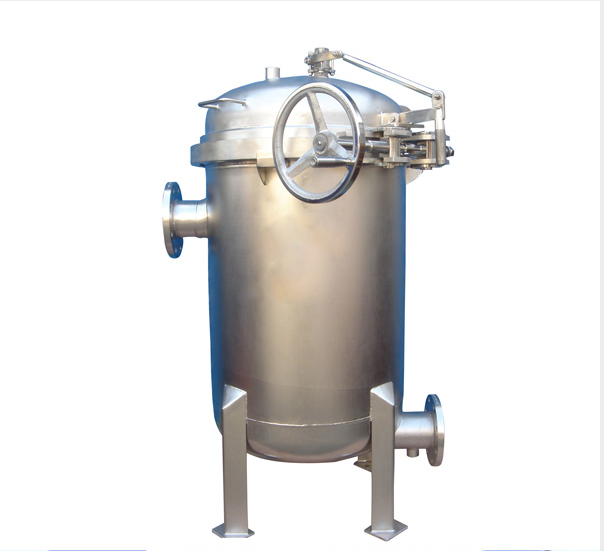

Side inlet bag filter housing

Side inlet bag filter housing

Product Description:

A glass bead,blasted finish that makes cleaning quick and easy and a cover that can be easily
adapted to different opening directions are among side inlet many value added features.
Quality construction and design assure clean effluent and protection for all downstream equipment.


Share
Description


Technique parameter:

  • Site inlet piping connection
  • Sizes for #01, #02,#03,#04 standard bag sizes
  • cover seals directly onto the filter bag for a perfect seal.
  • EPDM O-rings standard(other material avaliable)
  • Stainless steel basket
  • 2" or 1.5" DN flanged or BSP connection
  • Maximum operating pressure of 150 psi
  • Maximum operating temperature of 250F
  • Evacuation cover with swing bolt closures
  • Heavy duty adjustable mounting legs
  • Type 304 or 316 stainless steel construction
