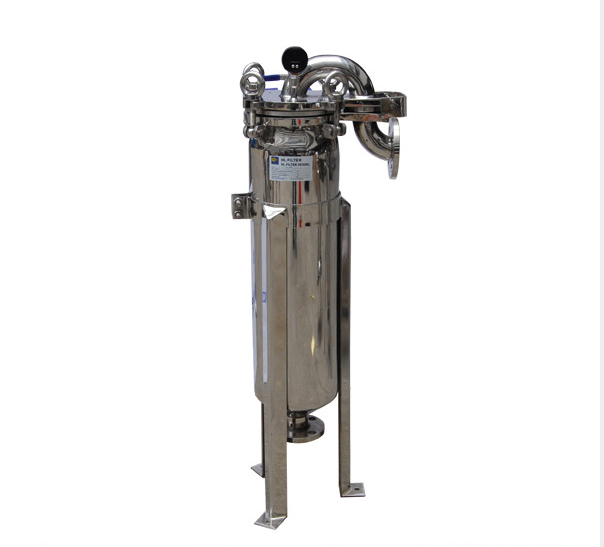

top inlet bag filter housing

top inlet bag filter housing

Product Description:

A top inlet bag filter housing is the finest single bag fitler housing available.
It flows through the top design results in minimum headroom of unfiltered
liquid for easy bag change-out as well as providing optimum sealing of the filter bag.
Quality construction and design assure clean effluent and protection for all downstream equipment.


Share
Description


Technique parameter:

  • Top inlet piping connection
  • Sizes for #01, #02,#03,#04 standard bag sizes
  • cover seals directly onto the filter bag for a perfect seal.
  • EPDM O-rings standard(other material avaliable)
  • Stainless steel basket
  • 2" or 1.5" DN flanged or threaded inlet/outlet and 1/4" NPT vents
  • Maximum operating pressure of 150 psi
  • Maximum operating temperature of 250F
  • Evacuation cover with swing bolt closures
  • Heavy duty adjustable mounting legs
  • Type 304 or 316 stainless steel construction
