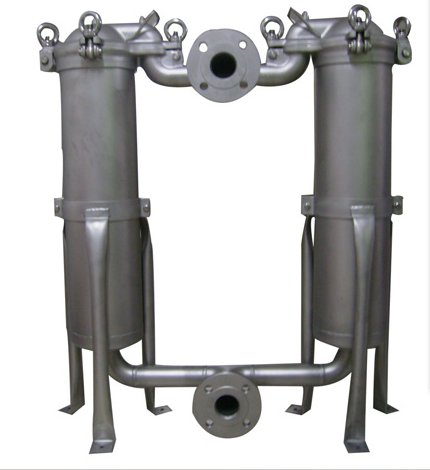

Parallel connection filter housings

Parallel connection filter housings

Product Description:

Double filter is also called double switching filter which is composed of two sets of stainless steel filters in parallel, with novel and reasonable structure, good sealing performance, strong flow ability, simple operation and other advantages, multifunction filter equipment wide application range and strong adaptability. Especially bag side leakage probability is small, can accurately ensure the filtering precision, and can quickly replace the filter bag, without the basic filter material consumption, the operating cost reduced.


Share
Description


Technique parameter:

Technical data of parallel connection filter housings
Parallel connection filter housing:
Flow type:top inlet or side inlet bottom out
Filter area(㎡):0.5×2
Max.flow(m⊃3;/h):80
Filter housing volume(litre):32×2
Operating press(bar):10
Connection(inlet/outlet):2"GB flange
Material:SS304,SS316,SS316L



Series connection filter housing:
Flow type:top inlet or side inlet bottom out
Filter area(㎡):0.5
Max.flow(m⊃3;/h):40
Filter housing volume(litre):32
Operating press(bar):10
Connection(inlet/outlet):2"GB flange
Material:SS304,SS316,SS316L
